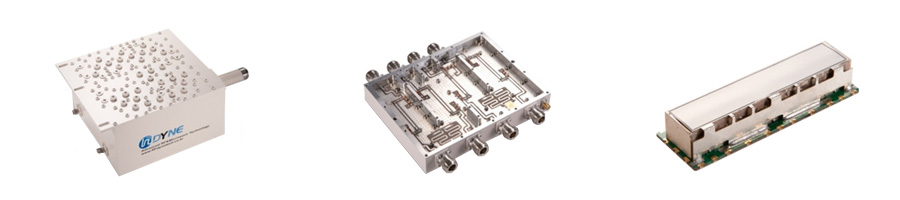

- CAVITY, L/C, CERAMIC SOLUTION AVAILABLE
- HIGH ABILITY TO COMBINE MULTIPLE BANDS
- HIGH FREQUENCY RANGE AND WIDE BAND AVAILABLE
- LOW LOSS, HIGH REJECTION
- COMPACT SIZE
- MILITARY TELECOMMUNICATION, SATELLITE APPLICATIONS
Multiplexer
| Part Number | Passband Frequency | IL | RL | Isolation | Power | Download |
|---|---|---|---|---|---|---|
| DX156D5M137B100PN-01 | 30 ~ 88MHz 225 ~ 512MHz |
0.5dB max | 14dB min | 60dB min | 100W | |
| DX287D5M25B10PT-01 | 225 ~ 275MHz 300 ~ 512MHz |
1.2dB max | 16dB min | 35dB min | 10W | |
| DUC284M32B120PT-01 | 253 ~ 268MHz 300 ~ 310MHz |
1.5dB max | 18dB min | 80dB min | 120W | |
| TX156M137B100PN-01 | 30 ~ 88MHz 225 ~ 270MHz 290 ~ 512MHz |
1.0dB max | 14dB min | 40dB min | 100W | |
| TXM255M150B150PN-01 | 30 ~ 180MHz 330 ~ 520MHz 740 ~ 960MHz |
0.6dB max | 15dB min | 45dB min | 150W | |
| TX255M150B30PN-02 | 30 ~ 180MHz 330 ~ 520MHz 746 ~ 1300MHz |
1.2dB max | 14dB min | 40dB min | 30W | |
| TX312M276B100PN-01 | 136 ~ 174MHz 450 ~ 510MHz 760 ~ 870MHz |
0.7dB max | 18dB min | 50dB min | 50W | |
| TXC670M460B40PN-01 | 430 ~ 440MHz 900 ~ 1630MHz 2400 ~ 2500MHz 5100 ~ 5900MHz |
1.2dB max | 14dB min | 45dB min | 40W |
